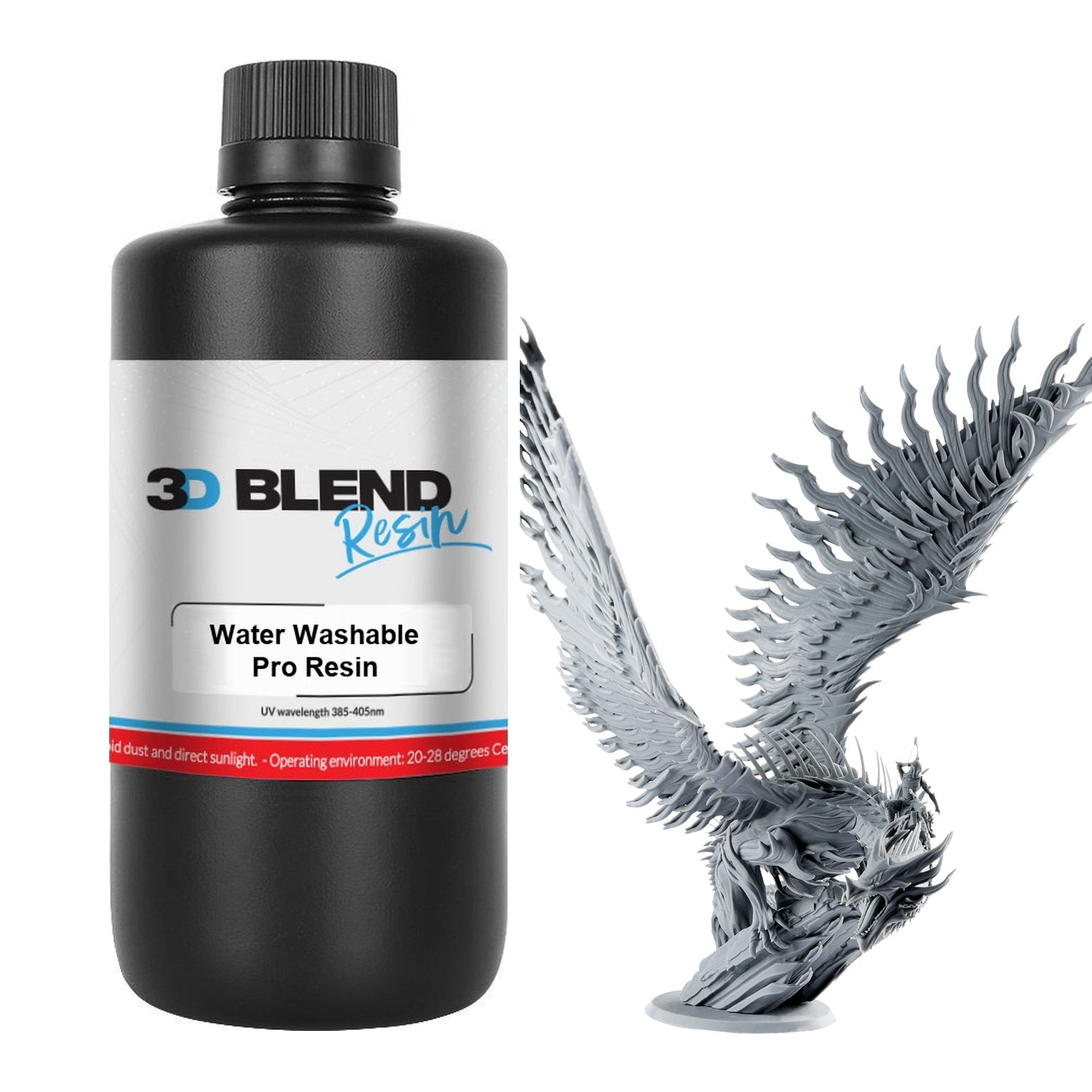

3D Blend Water Washable Pro Resin (Grey, 1kg)

Description

3D Blend Water Washable Pro Resin delivers sharp detail with tap-water clean-up: no IPA to buy, store or dispose of.

The Pro formula is tougher than common washable resins (11.2% elongation at break), so thin parts are less brittle.

Key features

• Wash with water — no IPA needed
• Tougher than standard washable — 11.2% elongation at break
• Low viscosity — 70–145 mPa·s, drains and cleans easily
• Low odor
• High precision — 0.2–0.7% shrinkage

Applications

• Home and classroom printing without solvents
• Miniatures and figures
• Prototypes and models

Product information

Item	Detail
Product	3D Blend Water Washable Pro Resin
Type	Water-washable photopolymer resin (WS-L series)
Colour	Grey
Net weight	1 kg
Wavelength	385–405 nm
Compatible printers	LCD, MSLA and DLP resin printers (Elegoo, Anycubic, Phrozen, Creality, Uniformation, Bambu and others)

Technical data

Property	Value
Tensile strength	30.1 MPa
Tensile modulus	380 MPa
Elongation at break	11.2%
Flexural strength	36.9 MPa
Flexural modulus	1018 MPa
Notched Izod impact	28 J/m
Hardness	82–84 Shore D
Shrinkage	0.2–0.7%
Viscosity (25 °C)	70–145 mPa·s
Density	1.05–1.25 g/cm³

Manufacturer test data (ASTM D638 / D790 / D256 / D2240, post-cured at 405 nm, 23 °C). Values ±10%.

How to print

1. Bring resin and room to 20–30 °C — cold resin is thick and causes failed prints
2. Shake the bottle for 1–2 minutes (or roll it) until no sediment remains
3. Check the FEP/ACF film for holes and clean the build plate; level the plate if needed
4. Pour resin into the vat up to the MAX line
5. In your slicer (Chitubox, Lychee, etc.) enter the print settings below, orient parts at 30–45° and add supports
6. Hollow large models (2–3 mm wall) and add drain holes to save resin and avoid suction
7. Run an exposure test (e.g. RERF or validation matrix) the first time you use this resin on your printer
8. Print, then let the plate drip for 10–15 min before removing parts

Recommended print settings (UV exposure)

Setting	Starting value
Layer height	0.05 mm
Bottom layers	4–6
Lift distance	6 mm (8–10 mm on 7–10″ screens, 11–15 mm on 10–15″ screens)
Lift speed	60–80 mm/min
Retract speed	150 mm/min
Wavelength	385–410 nm
Bottom exposure	20–25 s
Layer exposure	2.5–3.5 s

Starting values tested on a 6.6″ mono LCD (3500–4500 µW/cm²). Adjust for your printer’s light power: a stronger screen needs shorter exposure; a weaker or ageing screen needs longer.

Washing

1. Let excess resin drip off the build plate
2. Rinse in clean water for 2–3 min (an ultrasonic bath works well), then a short second rinse
3. Dry inside and out — water trapped in hollow parts causes cracks after curing
4. Never pour rinse water down the drain: leave it in sunlight until the resin solidifies, filter, and dispose of the solids as resin waste

UV post-curing (polymerization)

Parameter	Value
Wavelength	405 nm
High-power curing box (≈200 mW/cm²)	1 min per side
Standard curing station (40–60 W)	2–4 min, rotating
Before curing	Part must be completely dry inside and out
Note	Do not over-cure — washable resins become brittle

Storage & safety

• Store sealed in the original bottle at 15–30 °C, away from sunlight, heat sources and moisture
• Shake or roll the bottle for 1–2 minutes before every print — pigments and fillers settle
• Shelf life: 24 months unopened (18 months for dental resins)
• Wear nitrile gloves and safety glasses; work in a ventilated room
• Skin contact: wash with soap and water. Eye contact: rinse 15 min and seek medical advice
• Dispose of uncured resin and contaminated IPA as chemical waste, never in the drain

In the box

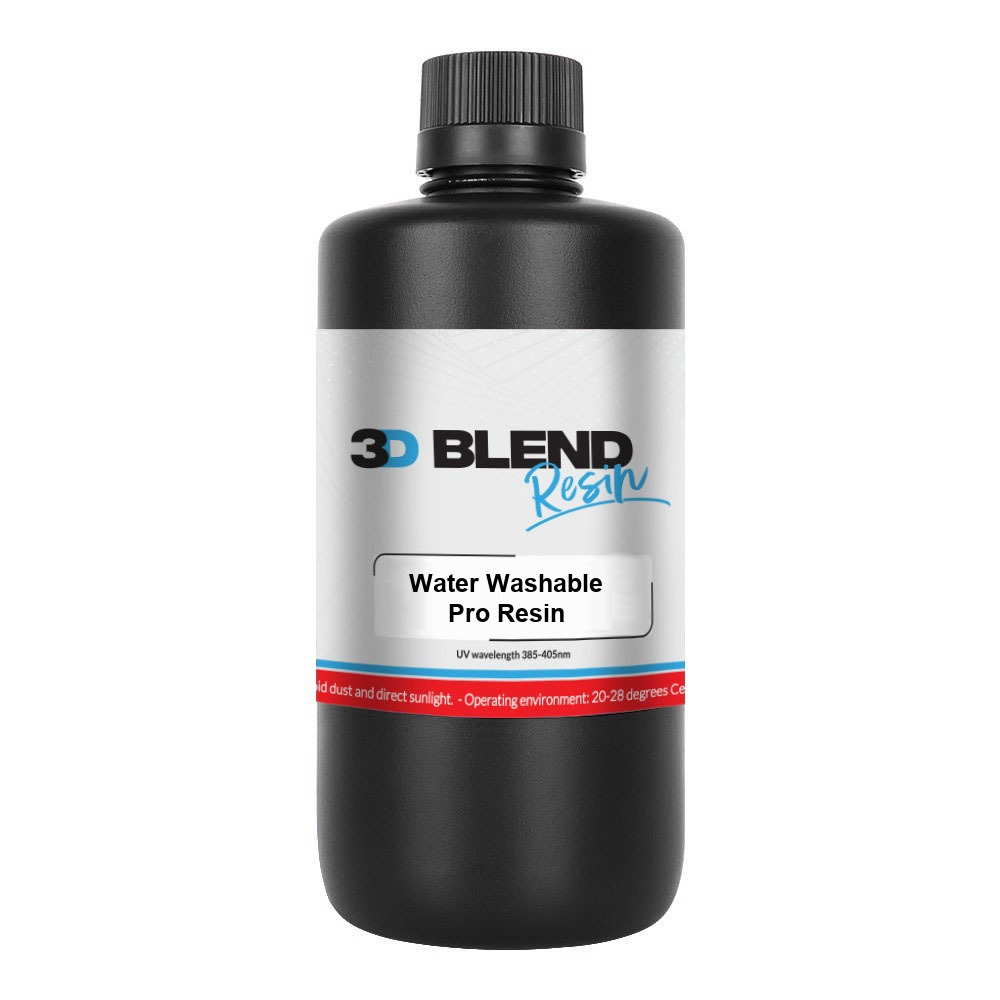

1 × 3D Blend Water Washable Pro Resin (Grey), 1 kg bottle.
