CR-Scan Raptor 3D Scanner

14,490.00 DH

Portable 3D scanner with 7 blue laser lines and infrared light (NIR): precision up to 0.02 mm, 24-bit color scan, objects from 5 mm to 2 m. Ideal for reverse engineering, quality control and 3D printing.

Incoming stock

SKU: CRSCA-ABB7B Category: Brand:

Description

.xd50449 .pair,.xd50449 .gal{display:grid;gap:12px;margin:20px 0}.xd50449 .pair{grid-template-columns:repeat(2,1fr)}.xd50449 .gal{grid-template-columns:repeat(2,1fr)}.xd50449 .pair img,.xd50449 .gal img{width:100%;height:auto;aspect-ratio:1/1;object-fit:contain;background:#f3f3f3;border-radius:8px;display:block}@media(max-width:700px){.xd50449 .pair,.xd50449 .gal{grid-template-columns:1fr}}

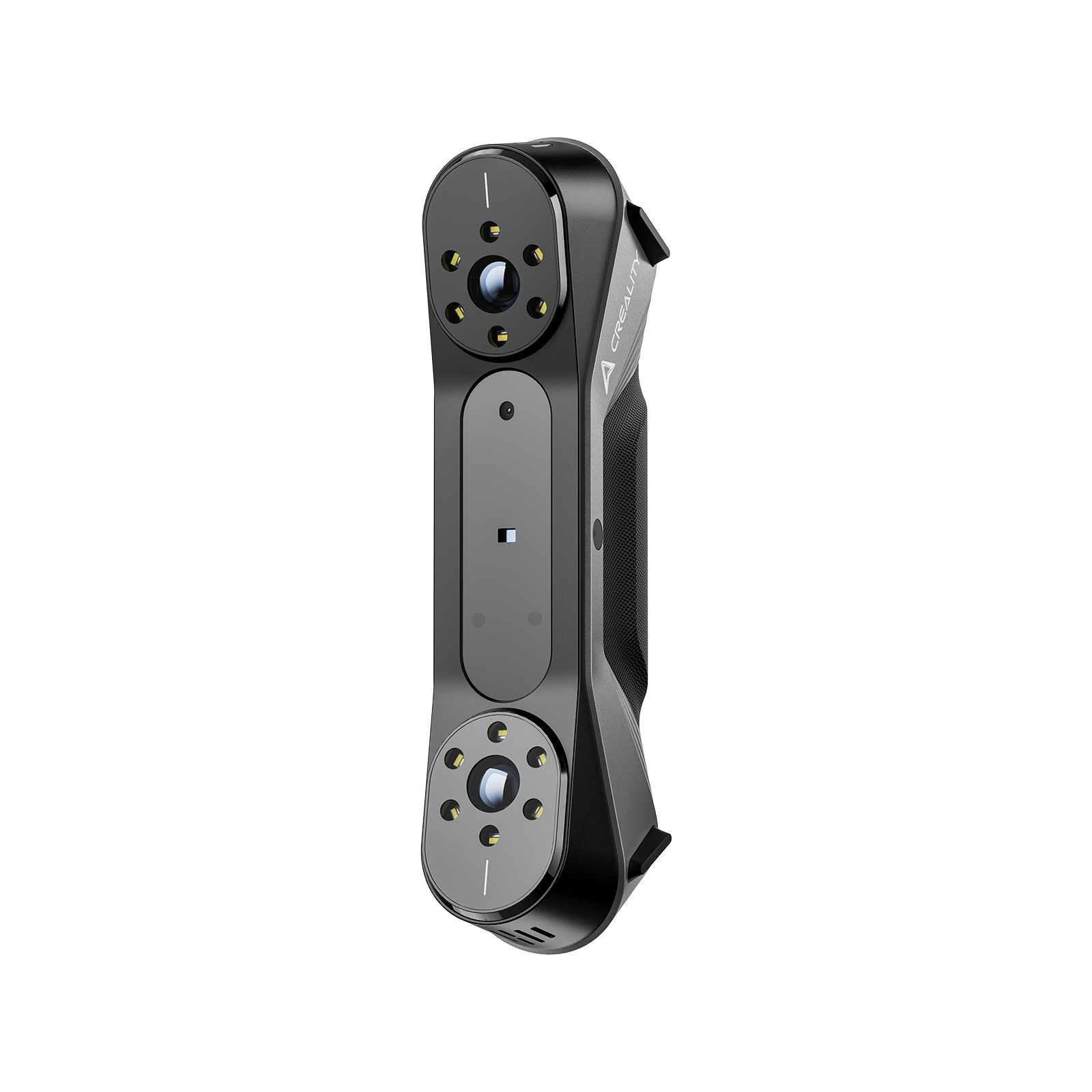

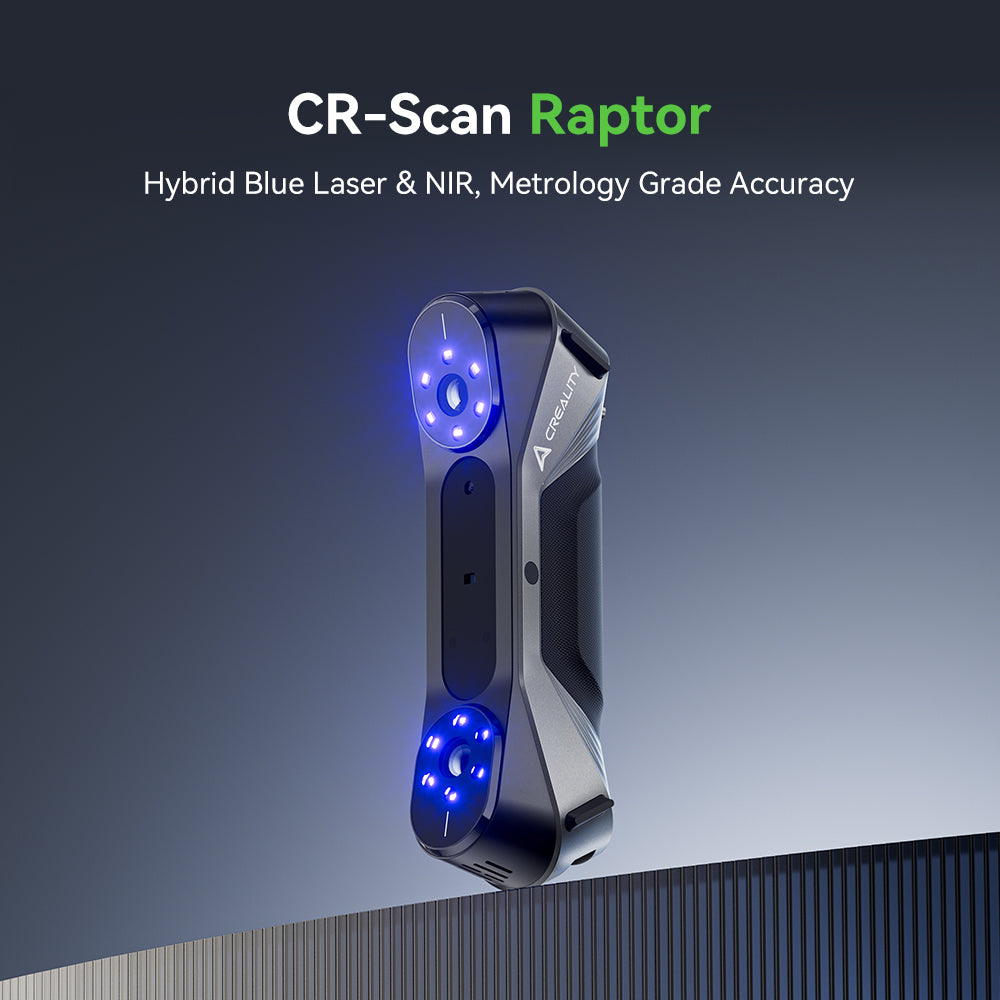

The Creality CR-Scan Raptor is a portable 3D scanner with dual technology: 7 parallel blue laser lines for detail and structured infrared light (NIR) for large parts. It goes from small mechanical part to 2-meter object without changing equipment.

With accuracy up to 0,02 mm and 24-bit color scanning, it is suitable for reverse engineering, quality control, product design and 3D printing scanning.

Creality CR-Scan Raptor - overview 1Creality CR-Scan Raptor - overview 2

The advantages of the CR-Scan Raptor

  • Precision up to 0.02 mm in blue laser mode (0.1 mm in NIR mode)
  • Up to 60 fps in blue laser and 20 fps in NIR
  • Scan volume from 5 × 5 × 5 mm up to 2,000 × 2,000 × 2,000 mm
  • Couleur 24 bits thanks to 12 white texture LEDs
  • Alignment by markers, geometry or texture (NIR mode)
  • Compatible with Windows 10/11 (64-bit) and macOS, STL, OBJ and PLY outputs

Technical specifications

.xt50449 input{position:absolute;opacity:0;pointer-events:none}.xt50449 .tl{display:flex;flex-wrap:wrap;gap:4px;border-bottom:2px solid #e74c3c;margin:0 0 0}.xt50449 .tl label{padding:10px 16px;cursor:pointer;background:#f1f1f1;font-weight:bold;border-radius:6px 6px 0 0}.xt50449 .tp{display:none;padding:14px 0}#xt50449r0:checked~.tl label[for=xt50449r0]{background:#e74c3c;color:#fff}#xt50449r0:checked~.tpw .tp0{display:block}#xt50449r1:checked~.tl label[for=xt50449r1]{background:#e74c3c;color:#fff}#xt50449r1:checked~.tpw .tp1{display:block}#xt50449r2:checked~.tl label[for=xt50449r2]{background:#e74c3c;color:#fff}#xt50449r2:checked~.tpw .tp2{display:block}#xt50449r3:checked~.tl label[for=xt50449r3]{background:#e74c3c;color:#fff}#xt50449r3:checked~.tpw .tp3{display:block}.xt50449 .tpw{margin-top:0}

Precision Up to 0.02 mm (blue laser) / 0.1 mm (NIR)
3D resolution 0,02 – 2 mm (bleu) / 0,1 – 2 mm (NIR)
Scan speed Up to 60 fps (blue) / 20 fps (NIR)
Scan volume 5 × 5 × 5 mm (blue) or 150 × 150 × 150 mm (NIR) up to 2,000 × 2,000 × 2,000 mm
Working distance 150 – 400 mm (bleu) / 170 – 1 000 mm (NIR)
Couleur 24-bit, 12 white texture LEDs
Technologie 7 parallel blue laser lines + structured infrared light (NIR)
Alignement Markers (blue); markers, geometry, texture (NIR)
Capteurs 1920 × 1200 camera, built-in IMU
Laser safety Classe 1
Connectique USB 3.0 Type-C, alimentation 12 V / 2 A
Poids / dimensions 372 g — 215 × 50 × 74 mm
Output formats STL, OBJ, PLY
Compatible systems Windows 10/11 (64 bits), macOS

In images

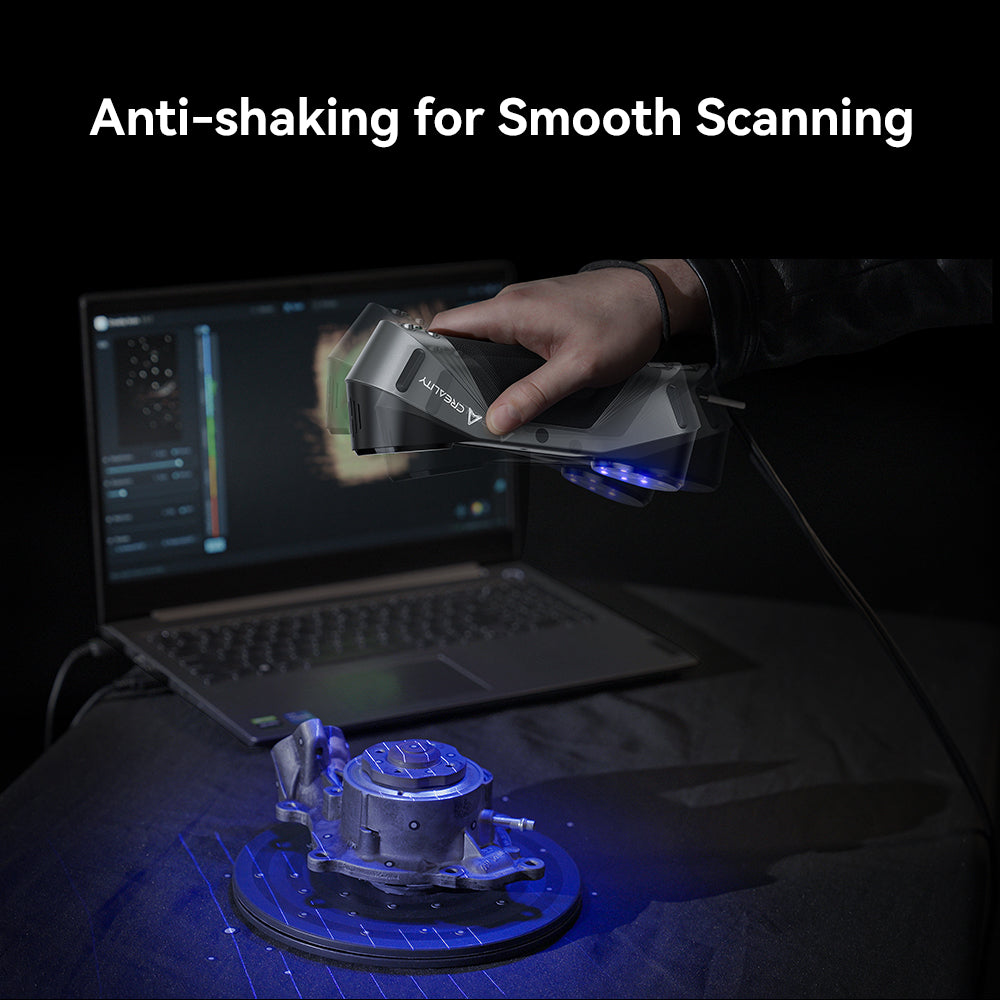

Creality CR-Scan Raptor - image 3Creality CR-Scan Raptor - image 4Creality CR-Scan Raptor - image 5Creality CR-Scan Raptor - image 6

For wireless use and a control screen, the Scan Bridge (Raptor version) is available separately.
