Coming Soon
Elephant Robotics myCobot Pro 600
116,771.00 DH
A professional six-axis collaborative robot arm from Elephant Robotics, designed for education, research and light industrial automation projects.
Disponible sur commande
Description

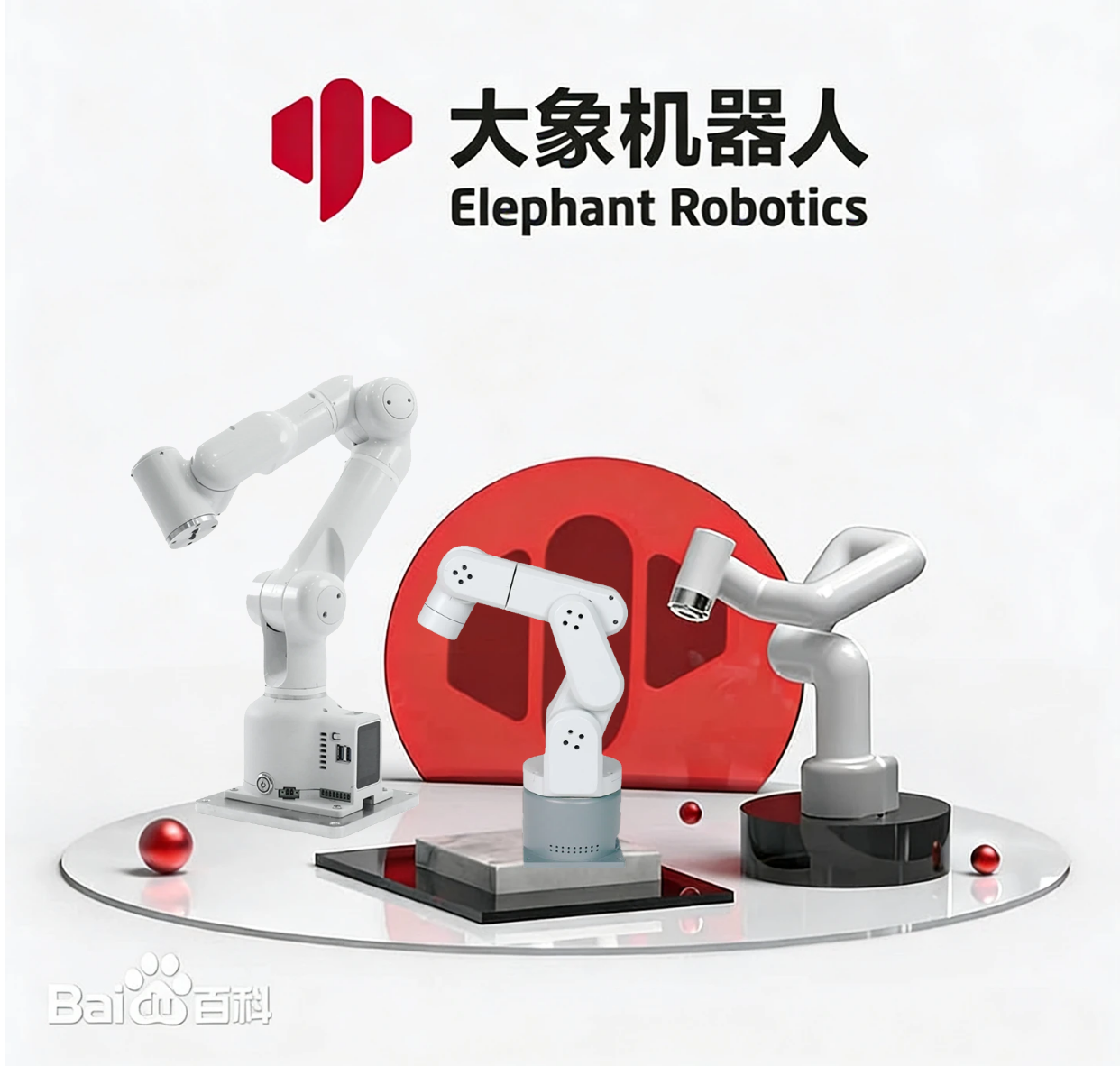

The Elephant Robotics myCobot Pro 600 is a 6-axis collaborative robotic arm designed as an alternative to repetitive labor, suitable for college education and commercial use. It is a reliable lightweight collaborative robot with a mini and all-in-one design, making it a portable but powerful, easy-to-use and cost-effective choice for automated production.
Key features
- Compact all-in-one design — helps make full use of the working space and perfectly integrates into the production environment.
- Collaborative operation — the anti-collision detection function based on the precise dynamic model enables it to work well with workers.
- Excellent performance — adopts harmonic reducer plus servo motor as a high-performance commercial light industrial manipulator.
- Easy to install — the structure is exquisite, convenient to carry, and can be plug and play.
- Raspberry Pi control — runs the independently developed Roboflow operating system, which is easy to use.
- Development support — supports ROS/Python and other development systems.
- Economical and applicable — ultra-high cost performance effectively reduces costs and increases efficiency for enterprises.
- Wide application — can be applied in commercial, scientific research, education, medical and showing case scenarios.
Specifications
| Model | myCobot pro-600 |
| Payload | 2kg |
| Weight | 8.8 kg |
| Working radius | 600 mm |
| Repeatability | ± 0.5 mm |
| DOF | 6 |
| Joints range | J1 +/- 180°; J2 -270~90°; J3 +/- 150°; J4 -260~80°; J5 +/- 168°; J6 +/- 174°; |
| Power input | AC100-240V, 50/60HZ |
| IP level | IP42 |
| Operating temperature | 0 – 50 ℃ |
| Material | Aluminum alloy, plastic, rubber |
| Bluetooth/wireless | Available |
| USB | USB3.0 x2; USB2.0 x2 |
| Display screen | No |
| HDMI interface | microHDMI x2 |
| Custom button | No |
| IO Port | Digital D-INPUT x6; Digital D-OUTPUT x6 |
| Emergency Stop Button | Available |
| Servo Motor-Motor | Servo motor/brushless DC motor |
| Servo motor-reducer | Harmonic reducer/gear set |
| Servo motor-encoder | 19/12 bit |
| Servo motor-maximum speed | 2300RPM |
